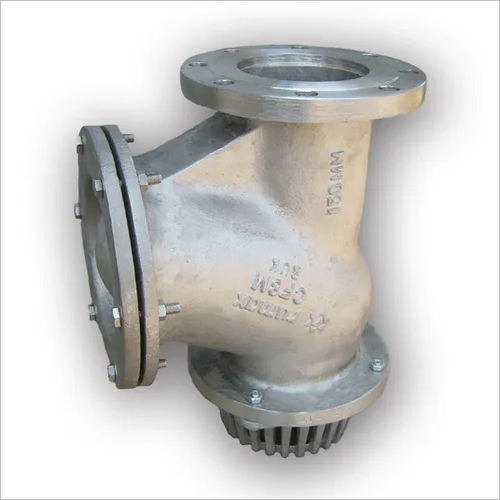

Leveraging on our robust infrastructural set up, we have been able to manufacture and supply a broad range of Stainless Steel Foot Valve. The offered valve is generally used in conjunction with suction pumps to maintain pressure in a plumbing system while keeping out solids which could gum up the works. This can be used for many systems where a liquid needs to be pumped from a lower level holding area. Our clients can avail this Stainless Steel Foot Valve from us in various technical specifications at market leading price. Features: - High heat tolerance
- Sturdy construction
- Optimum strength
|
PRINCIPLE OF Stainless Steel Foot Valve |
RUMAX has involved in a reinforced rubber coated ball to arrest flow media in return condition. This ball moves totally out of the flow path when the pumping is on, to give minimum head losses (see Figure). The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof sealing.
|
EXCELLENT ADVANTAGES OF Stainless Steel Foot Valve |
* Lower power consumption * Larger solid handling capacity * Self cleaning, Non-Clogging * Perfect Sealing * Low pressure drop
| * Maintenance free * Replacement of spares is a minutes job * Works excellently in muddy / clear water, viscous liquid, paper stock, slurries |
|
COMPARISON |
Stainless Steel Foot Valve | CONVENTIONAL FOOT TYPE | Innovative design, focused to eliminate all constraints of conventional one and offer optimum performance | Conventional design carries lot of constraints. | Internals designed in such a way that laminar flow is not disturbed to a large extent. | Turbulence is generated in fluid flow due to design limitations. | Very low pressure drop across the valve which saves energy, reduces pump cycle time duration | Comparatively high pressure losses, requires more energy increases pump cycle time duration. | Opening & closing by simple rubber ball mechanism, so maintenance free | Opening & closing involves spring mechanism calls for frequent maintenance. | |
| | This valve must be installed vertically. Working Pressure: 6kg/cm2 Sizes : Threaded 25- 100 mm Flanged 40 - 350 mm Higher Pressure ratings on request | |
Dimensions (Valve size in mm)
Size(A) | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | H | 115 | 154 | 190 | 220 | 260 | 308 | 380 | 440 | W | 90 | 125 | 148 | 190 | 232 | 275 | 300 | 360 | | Part List / Materials of Construction
Part | Description | Material | 1. | Body | Stainless steel | 2. | Strainer | Stainless steel | 3. | Ball | Nitrile Rubber | 4. | Seal Ring | Nitrile Rubber | 5. | Fastener | Stainless steel |
|
