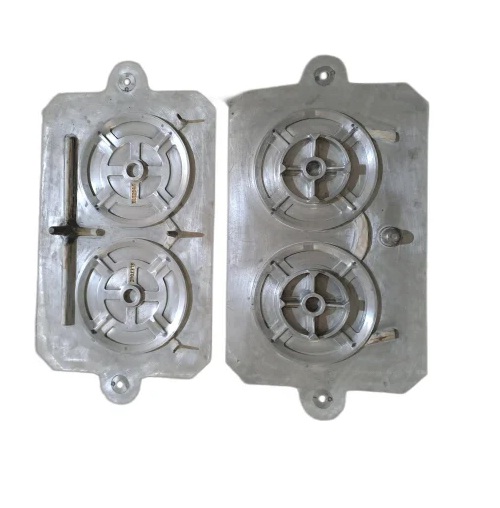

Cast Iron Pattern

Cast Iron Pattern Specification

Product Type
Pattern

Casting Process
Sand Casting

Application
Foundry, Engineering, Automobile

Method
Casting

Surface Treatment
Polished

Weight (kg)
2-50 kg

Color
Metallic Grey

Pattern Type
Loose Pattern

Finish
Smooth Surface

Hardness
180-220 HB

Service Life
Long

Corrosion Resistance
Yes

Density
7.2 g/cm3

Shape
Customizable

Material
Cast Iron

Durability
High

Tolerance
0.05 mm

Cast Iron Pattern Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1

About Cast Iron Pattern

We can manufacture Cast Iron Pattern and Cast Iron Core Box in Match Plate fitted condition as per Customer requirements. We can manufacture Industrial Valve Patterns, Industrial Pump Patterns and Pattern for any Engineering Casting parts.

Superior Durability and Finish

Our Cast Iron Pattern is engineered for high performance and extended service life. The smooth, polished surface enhances casting quality, while the robust material and excellent corrosion resistance ensure sustained durability even in challenging environments. Each pattern is tailored to deliver optimal results for foundry and engineering applications.

Precision and Customization

With a tolerance level of 0.05 mm and the ability to customize shapes, our Cast Iron Pattern meets precise technical requirements across diverse industries. This adaptability supports complex design needs, making it a versatile choice for manufacturers and engineers demanding accuracy and flexibility in casting projects.

FAQ's of Cast Iron Pattern:

Q: How is the Cast Iron Pattern manufactured?

A: The Cast Iron Pattern is produced using the sand casting method, which involves shaping molten cast iron into the desired pattern and then refining it through polishing to achieve a smooth surface and accurate dimensions.

Q: What applications can this Cast Iron Pattern be used for?

A: This product is ideal for use in foundry operations, engineering projects, and the automobile industry due to its customizable design, high durability, and corrosion-resistant finish.

Q: When should I choose a loose pattern made of cast iron?

A: A loose pattern made of cast iron is best chosen when you require high tolerance, extended durability, a long service life, and have unique or complex shape requirements for your casting needs.

Q: Where can this Cast Iron Pattern be deployed?

A: It can be deployed in foundries, manufacturing plants, and engineering facilities, or wherever high-precision metal casting is vital to the production process.

Q: What is the process for customizing the shape of the pattern?

A: To customize the shape, clients provide specific design requirements or drawings, which are then used to shape the cast iron according to detailed specifications while ensuring all tolerances are maintained.

Q: What is the advantage of using a cast iron pattern with high hardness and low tolerance?

A: The high hardness (180-220 HB) combined with a tight tolerance of 0.05 mm ensures exceptional wear resistance, dimensional stability, and consistently accurate castings, leading to superior end-product quality.
