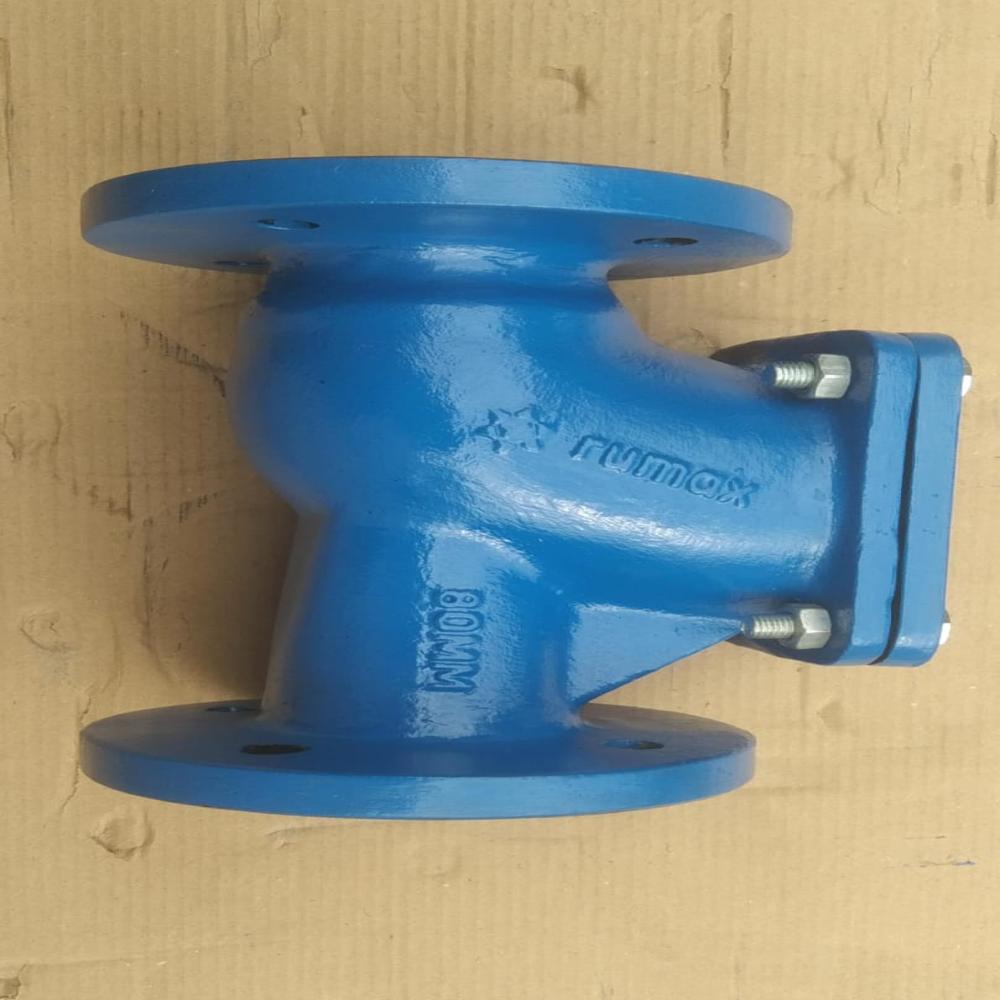

BALL TYPE CHECK VALVES

BALL TYPE CHECK VALVES Specification

Connection Type
Flanged End

Valve Type
Check Valve

Control System
Automatic (Non-return Mechanism)

Features
Self-cleaning, non-clogging design, corrosion resistant coating

Material
Cast Iron/ Ductile Iron (Body), Nitrile Rubber (Ball/Sealing)

Valve Size
50 mm to 300 mm (various options, shown image: 80 mm)

Structure
Ball Type Check Valve

Sealing
Nitrile Rubber or Equivalent

Application
Water, Sewage, Effluent, Oil and Chemical Process Pipelines

Type
Ball Type

Power
Manual (Non-powered)

Pressure
PN 1.0 - PN 1.6 Mpa

Media
Water, Oil, Gas, Chemicals

Port Size
80 mm (as visible in image, other sizes available)

Temperature
-10C to 80C (standard)

Disc
Solid Ball

Coating
Fusion Bonded Epoxy or Synthetic Enamel Painted

Flange Drilling
IS/BS/DIN Standard Compatible

Face to Face Dimension
As per IS/BS/DIN Standard

Maintenance
Easy maintenance design, top-cover openable for inspection

Opening Pressure
Low opening pressure (minimal head loss)

End Standard
Flange as per IS 1538/ANSI B16.1/DIN

Flow Direction
Uni-directional

Installation Orientation
Horizontal or Vertical (as per flow)

About BALL TYPE CHECK VALVES

Celebrate the marvelously engineered Ball Type Check Valves, acclaimed for their valorous performance in safeguarding pipelines across water, sewage, oil, and chemical processing industries. With favorable reviews from industry experts, these valves feature a redoubtable solid ball and a self-cleaning, non-clogging design, ensuring optimum reliability. Compatible with major international flange standards and coated for enduring corrosion resistance, they promise minimal head loss and easy inspection access. Available for a limited time in multiple sizes and superior sealing options, these robust valves ensure seamless flow and simple maintenance.

Advantages and Proper Use of Ball Type Check Valves

Install Ball Type Check Valves in either horizontal or vertical orientations, adapting to uni-directional flow with low opening pressure. These valves offer competitive advantages like non-clogging, self-cleaning mechanisms and easy top-cover access for maintenance. Application is straightforward-simply align with the flow direction in pipelines handling water, oil, sewage, or chemical effluents. Reliable sealing and corrosion-resistant structure make them the preferred choice in challenging environments, enhancing pipeline longevity and reducing downtime.

Certifications, Shipping, and Sampling Details for Ball Type Check Valves

Each Ball Type Check Valve can be estimated for shipment from the designated FOB port upon order confirmation. Certified under international and domestic standards like IS/BS/DIN, these valves meet stringent quality requirements. Samples for evaluation may be dispatched under the supplier's sample policy; contact for availability and terms. Once approved, bulk quantities are efficiently shipped worldwide, ensuring timely delivery and consistency regardless of order size.

FAQ's of BALL TYPE CHECK VALVES:

Q: How are Ball Type Check Valves installed within a pipeline?

A: Ball Type Check Valves are designed for both horizontal and vertical installation, depending on the direction of flow. Align the valve's flow arrow with the intended pipeline direction and secure the flanged ends as per IS/BS/DIN standards.

Q: What makes these Ball Type Check Valves suitable for chemical and sewage pipelines?

A: Their robust construction using cast iron or ductile iron, combined with a corrosion-resistant coating and non-clogging design, ensures reliable operation and longevity in demanding applications such as chemical, water, and sewage pipelines.

Q: When should maintenance or inspection be performed on the Ball Type Check Valve?

A: Scheduled inspections or maintenance can be easily carried out by opening the top cover. Routine checks are recommended to ensure the valve remains clean and operational, especially in high-debris environments.

Q: Where do these valves derive their competitive advantages in the market?

A: These valves provide superior advantages like self-cleaning ability, low head loss, easy maintenance access, and compatibility with a wide range of international flange standards, making them versatile and dependable.

Q: What is the process for getting a product sample?

A: Contact the manufacturer or supplier to request a sample. The sample will be dispatched according to the existing sample policy and can be shipped to your specified location after the necessary approvals and documentation.

Q: How does the automatic non-return mechanism benefit pipeline management?

A: The automatic non-return (check) mechanism ensures uni-directional flow, preventing backflow and safeguarding system integrity, thus reducing wear on sensitive equipment and enhancing operational safety.
