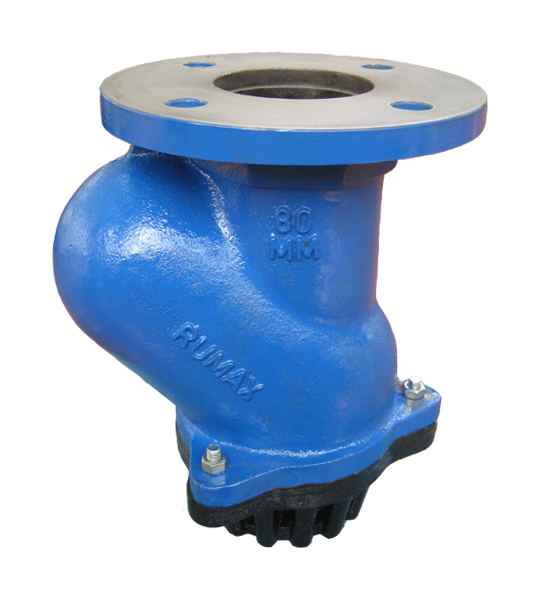

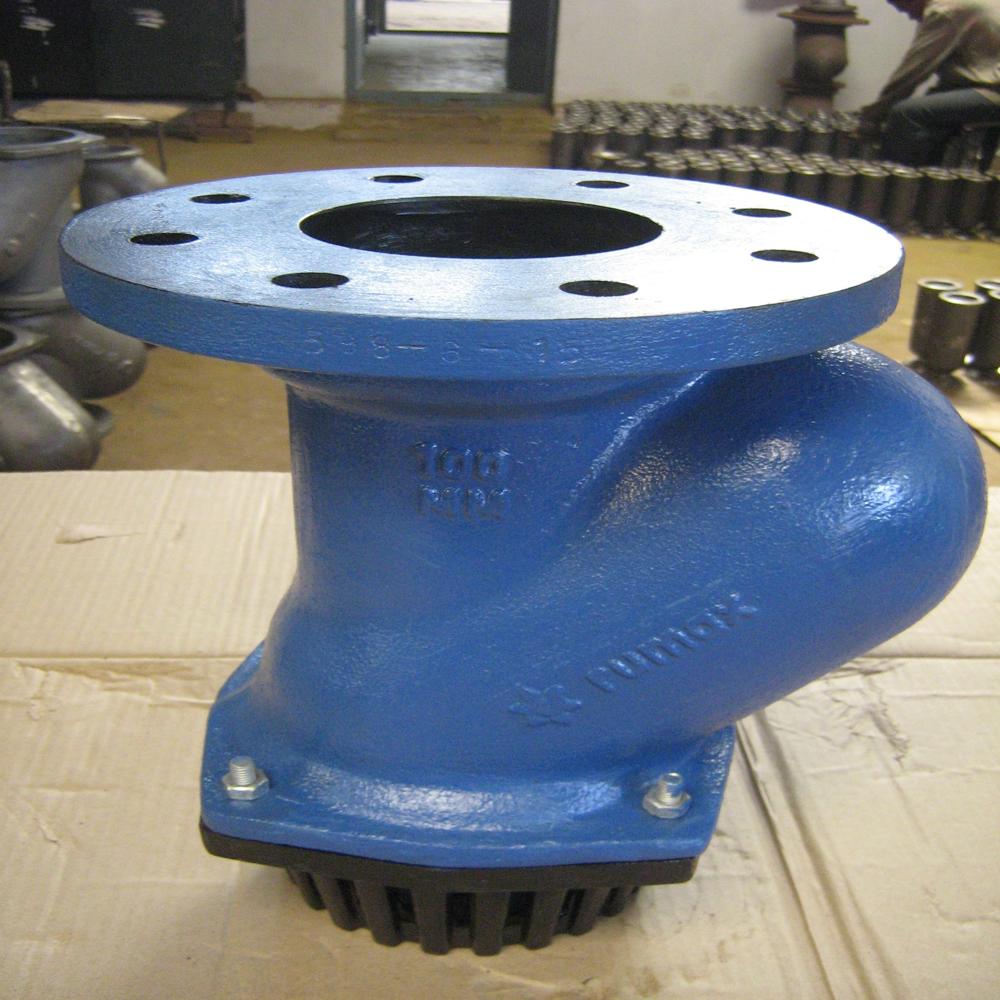

Ball Type Foot Valves

Ball Type Foot Valves
Ball Type Foot Valves
Send Inquiry
Product Code : BV 03
Brand Name : Rumax
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Ton/Tons
Product Description

Ball Type Foot Valves Castings

Our company is manufacturing, exporting and supplying superior quality Ball Type Foot Valves Castings that is extensively used to control the flow of liquid. These valve castings are made available in different sizes and shapes to satisfy the various requirements our clients. Moreover, our skilled professionals manufacture these Ball Type Foot Valve Castings using pristine quality raw material and innovative technology in tandem with set market norms. Offered valve castings passes through strict quality tests for confirming defect free product before final delivery

Features:

  • Dimensional accuracy

  • Robust design

  • Corrosion resistance

  • Easy installation

PRINCIPLE OF RUMAX FOOT VALVE CASTINGS
RUMAX has involved in a reinforced rubber coated ball to arrest flow media in return condition. This ball moves totally out of the flow path when the pumping is on, to give minimum head losses (see Figure). The spherical rubber coated ball seals perfectly on the rounded valve seat ensuring a totally leak proof sealing.

EXCELLENT ADVANTAGES OF RUMAX FOOT VALVE CATINGS
* Lower power consumption
* Larger solid handling capacity
* Self cleaning, Non-Clogging
* Perfect Sealing
* Low pressure drop
* Maintenance free
* Replacement of spares is a minutes job
* Works excellently in muddy / clear water,
viscous liquid, paper stock, slurries

COMPARISON

RUMAX BALL TYPE FOOT VALVE
CONVENTIONAL FOOT TYPE
Innovative design, focused to eliminate all constraints of conventional one and offer optimum performance Conventional design carries lot of constraints.
Internals designed in such a way that laminar flow is not disturbed to a large extent. Turbulence is generated in fluid flow due to design limitations.
Very low pressure drop across the valve which saves energy, reduces pump cycle time duration Comparatively high pressure losses, requires more energy increases pump cycle time duration.
Opening & closing by simple rubber ball mechanism, so maintenance free Opening & closing involves spring mechanism calls for frequent maintenance.
This valve must be installed vertically.
Working Pressure: 6kg/cm2

Sizes : Threaded 25- 100 mm
           Flanged 40 - 350 mm

Higher Pressure ratings on request
Dimensions (Valve size in mm)
Size(A) 25 40 50 65 80 100 125 150
H 115 154 190 220 260 308 380 440
W 90 125 148 190 232 275 300 360
Part List / Materials of Construction
Part Description Material
1. Body * Cast Iron
2. Strainer * Cast Iron
3. Ball Nitrile Rubber
4. Seal Ring Nitrile Rubber
5. Fastener Carbon Steel







* WCB & SS on request
